High Speed 4 Corner Folder Gluer Machine 400m/Min 800mm Blank Width

Name: High Speed 4 Corner Folder Gluer Machine 400mMin 800mm Blank Width
Brand: PRINTYOUNG
Price: 79500 USD

Quality High Speed 4 Corner Folder Gluer Machine 400m/Min 800mm Blank Width wholesale

Brand Name : PRINTYOUNG

Model Number : GS-800

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 79500 Set

Payment Terms : L/C, T/T

Supply Ability : 1 Set/Sets per Month

Delivery Time : 40 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Condition : New

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V 50HZ

Dimension : 15x1.53x1.3m

Weight : 6500kg

Warranty : 1 Year

Paper Material : Cardboard 210-800gsm,A/B/E Flute

Max.Speed : 400m/min

Max.Thickness of Folded Box : 12mm

Way of Folding : Fold 1 and fold 3 are 180°and 165°,fold 2 and fold 4 are 180°

Power Supply : 3P 380V 50HZ

Blank Width : 800mm

Total Power : 31.18kw

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Italy, Morocco, Algeria, South Africa

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Contact Now

Products Description

Technical Parameters

Model	800
Paper Material	Cardboard 210-800gsm,A/B/E Flute
Max.Speed	400m/min
Max.Thickness of Folded Box	12mm
Power Supply	3P 380V 50HZ
Blank Width	800mm
Length x Width x Height	15x1.53x1.3m
Net Weight	6.5T
Total Power	31.18kw
Way of Folding	Fold 1 and fold 3 are 180° and 165°,fold 2 and fold 4 are 180°

Configuration

High Speed 4 Corner Folder Gluer Machine 400m/Min 800mm Blank Width

Paper Feeding Section Aligner section

The feed part is driven by variable frequency motor and The paper board sent from feeder section will be corrected by

synchronizes with the main engine.Feeder section aligner section to ensure transmission accurately.

equipped with three pieces feeding knife, adjust the Pressing drive pressure can be adjusted up and down to

asymmetrical lengths as per the box sample.Rail width accommodate different paper board thickness.

can be horizontally adjusted and set by seven pieces

30mm thickened feeding belt and 10mm metal board.

Operators can operate feeder switch in any regional.

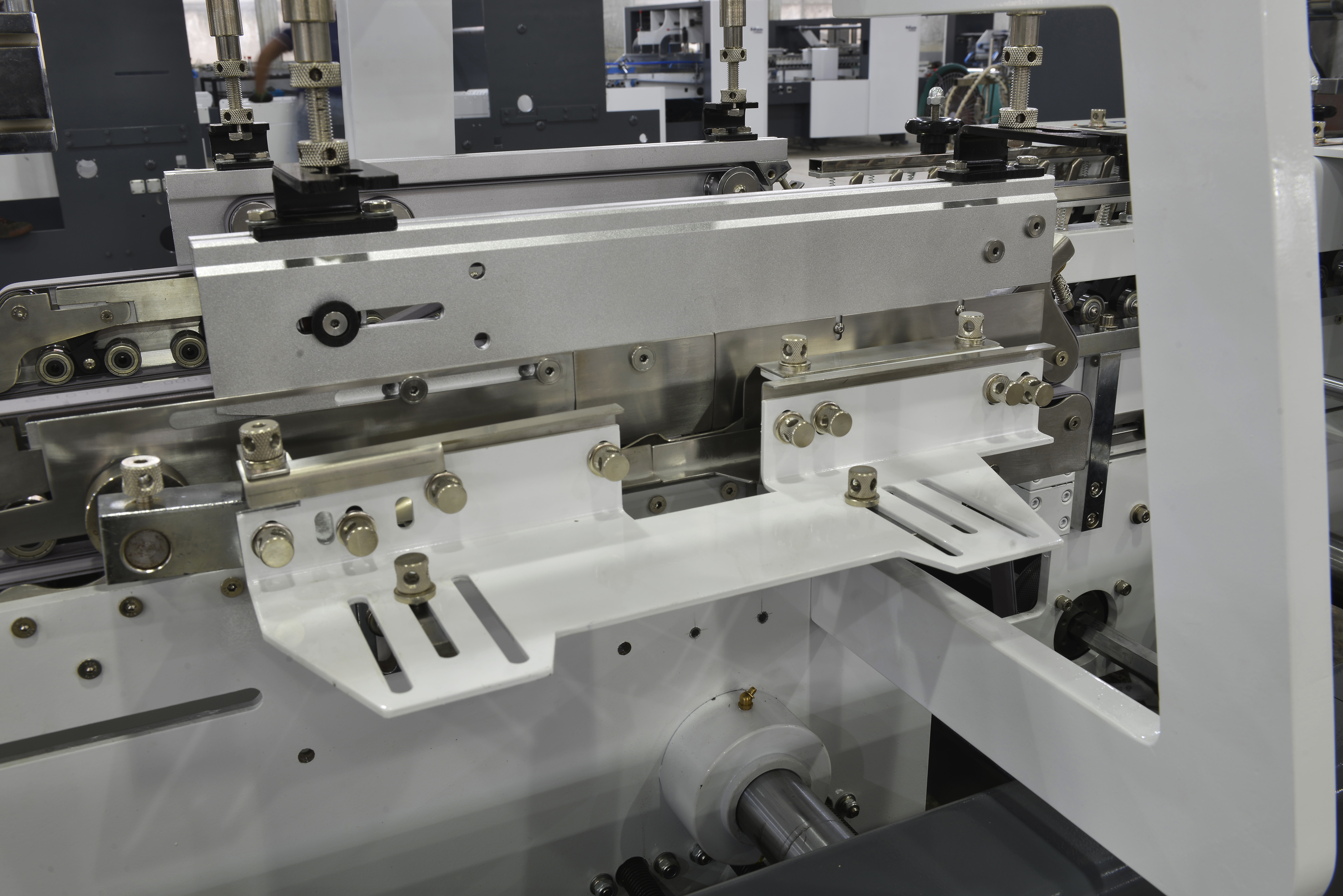

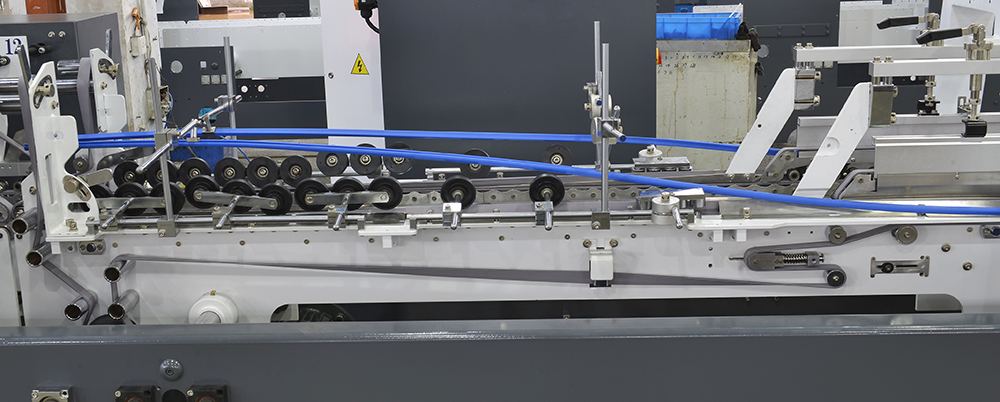

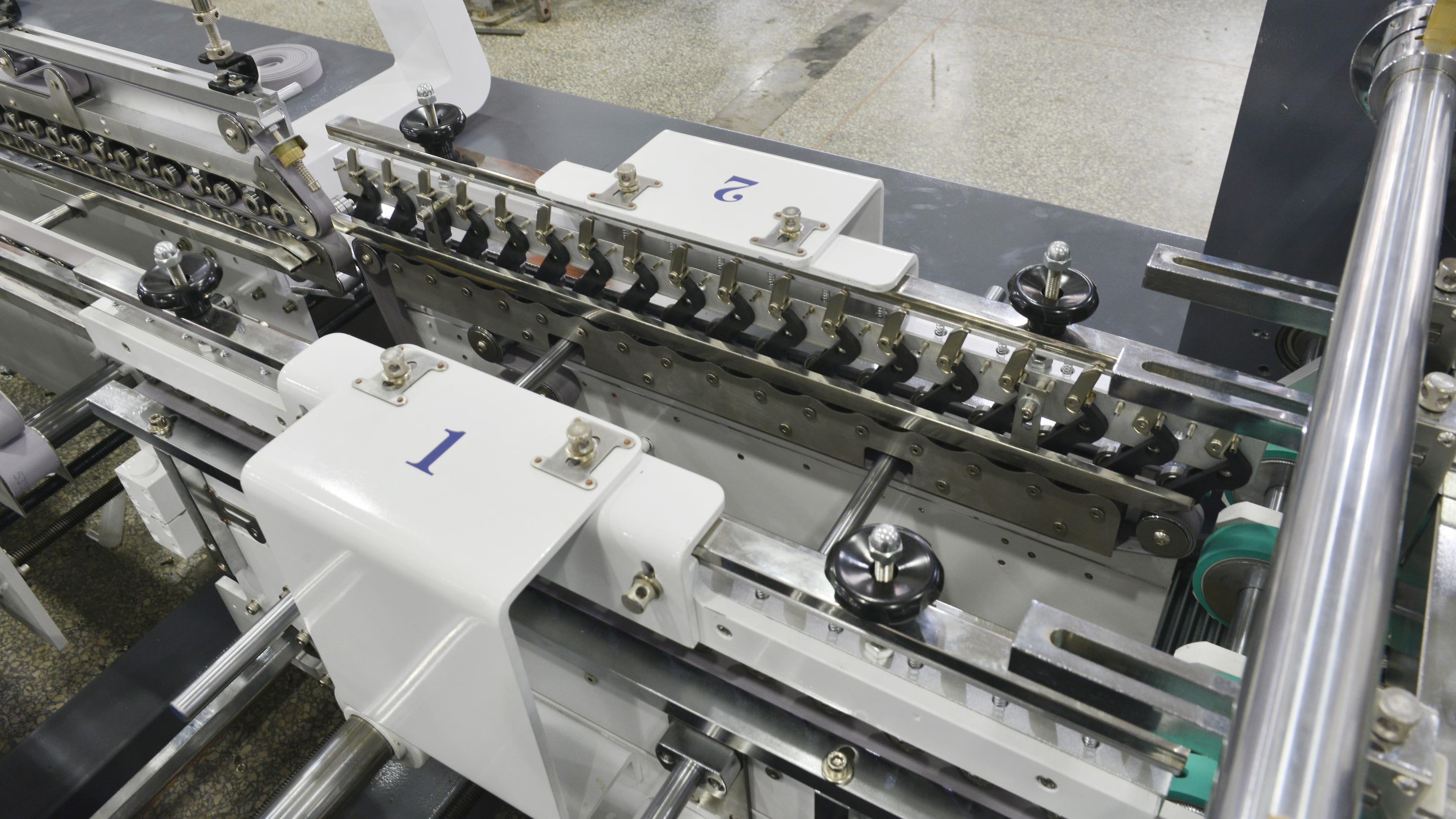

Pre-folding section Crash lock bottom section

Special first folding line pre-fold 180°. third line 165° ,which Compete set of crash lock bottom device makes the lock bottom

perfectly meeting the requirements of automatic packaging Part perfectly .Sectional-type upper Belt board with special design.

industry.

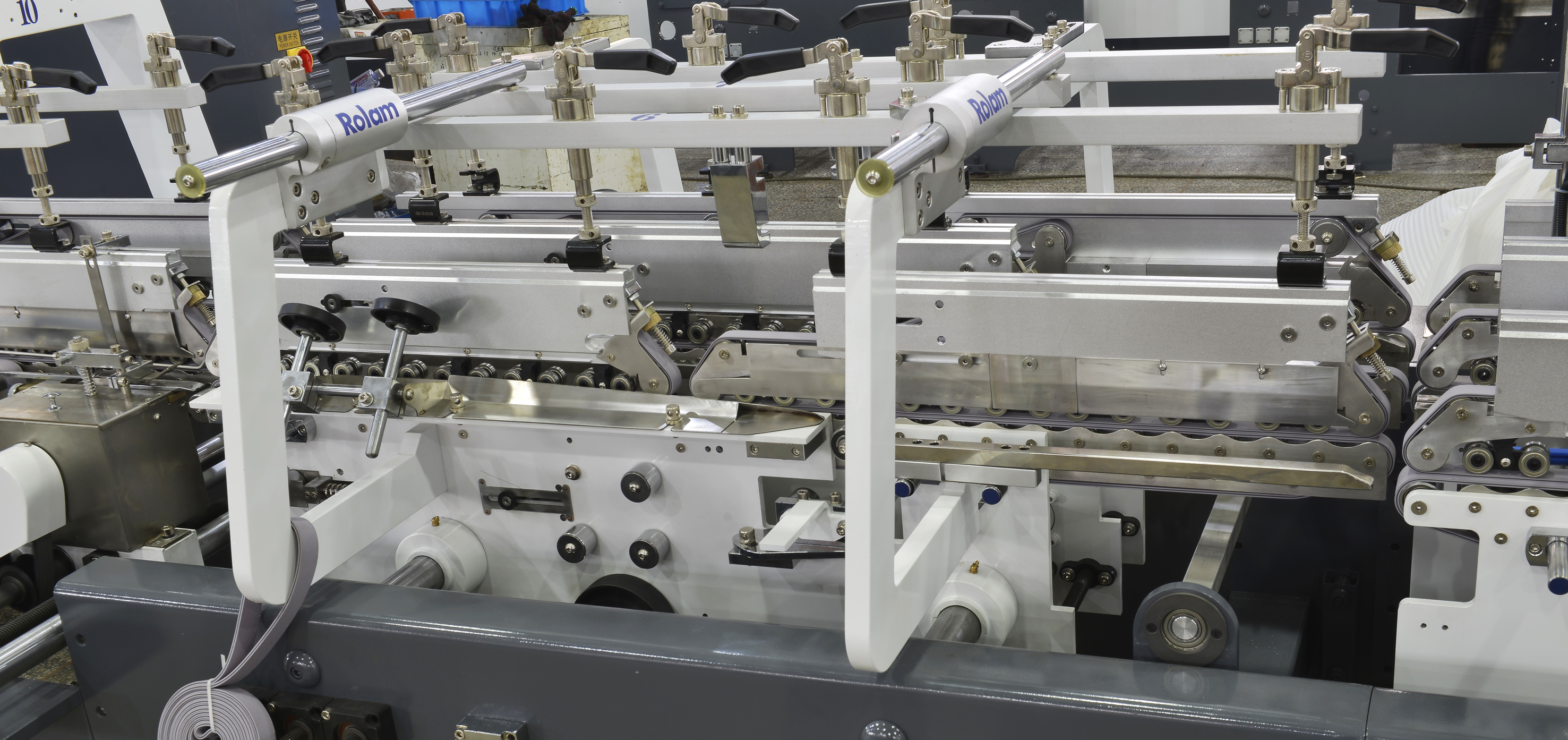

Lower gluing tank Folding and closing

lower gluing tank is large volume. The Second and fourth folding line 180°.Folding and closing section

Easy to remove and clean. transmit from right and left side ,the belt speed can be adjusted separately

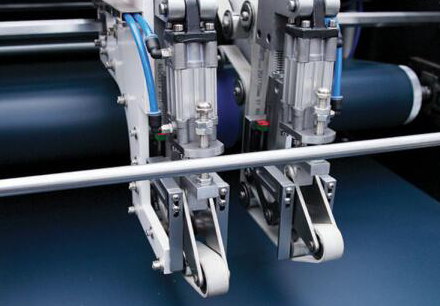

Electronic upper gluing system by guns. and correct the way of box running to ensure straightly delivery.

Trombone section Transmission

Up and down belt can be adjusted separately. Equipped with special additional sponge belt for the press

Equipped with photo electronic counting device and kicking of boxes valley part.Upper section moves back and forward,

paper device, which can press the paper after accounting allowing fordifferent box length.

and make it easy to pack . Also equipped with feeding paper

inspection device.

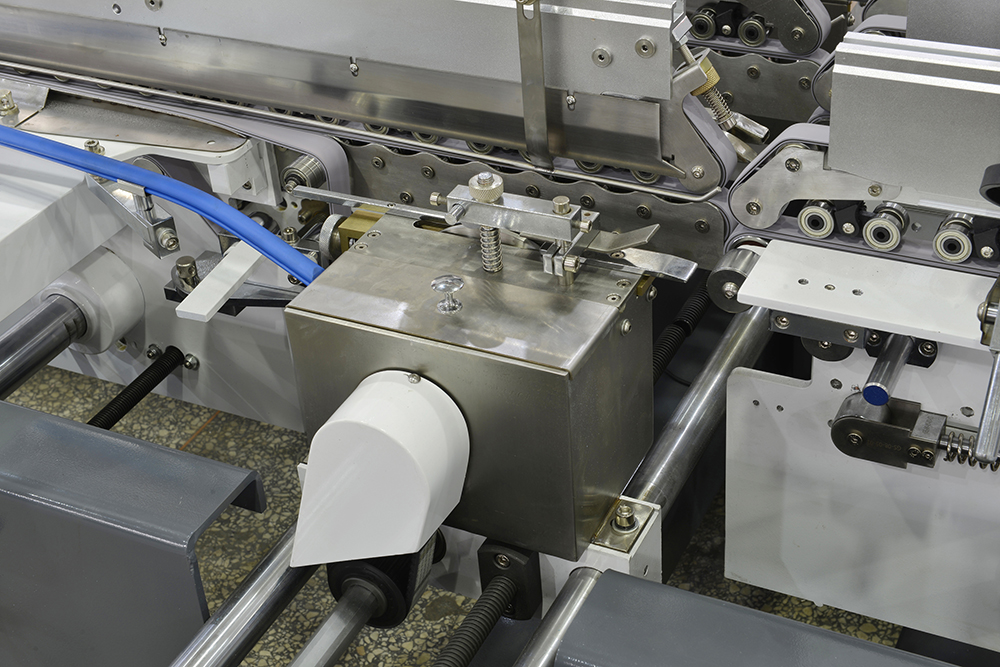

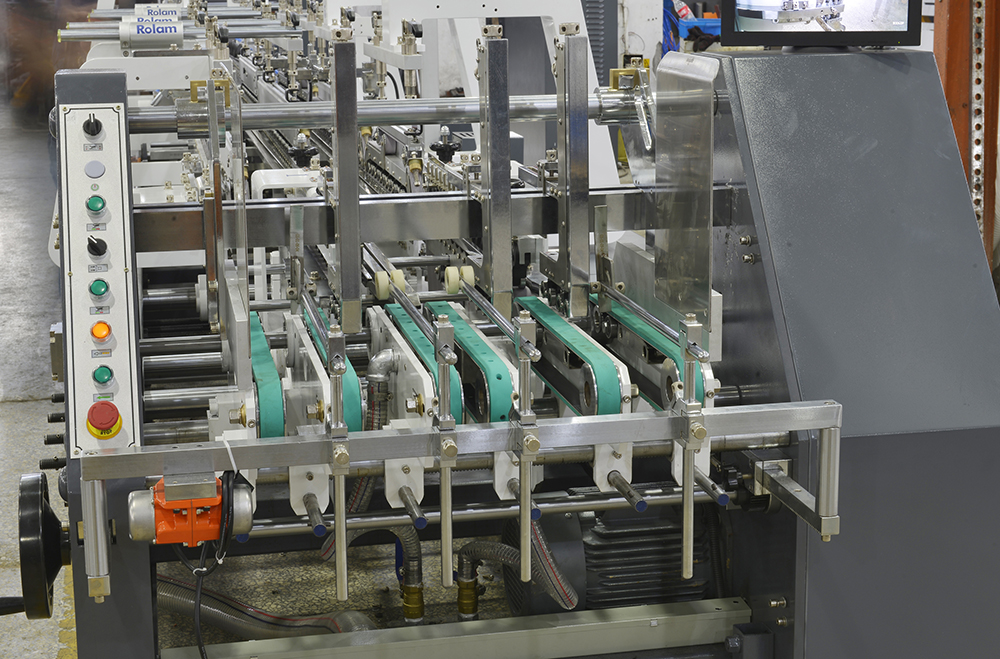

Box Squaring Device 4 and 6-corner device

Full press section continuously and automatically box Motorized and untimed electronic back folding system

collection mechanism that ensures a neat transfer to the with intelligent servo motor technology

press section,guaranteeing a well aligned flow.

Straight Line Box
Model	800Type
Way of Folding	Two Carriers
B+C+D+E	130-800
C+D	65
C+D+E	70
F	70-800
G(Max)	800
D+E(Max)	300
G(Max)	500

Crash Lock Bottom Box
Model	800Type
Way of Folding	Two carriers
B+C+D+E	130-800
C+D	65
F	70-800
G(Max)	800
H(Min)	25
L	30-100

4 Corners Box
Model	800Type
Way of folding	Two carriers
A+B+C	160-800
B(min)	90
F	70-800
G(max)	800
H(min)	25
L	30-100

6 Corners Box
Model	800 Type
Way of Folding	Two carriers
A+B+C+D+E	260-650
B+C(min )	80
B(min)	80
C(min)	30
D(min)	70
F	70-800
G(max)	800
H(min)	25
L	30-100

Customer

Company Profile

Why Choose Us

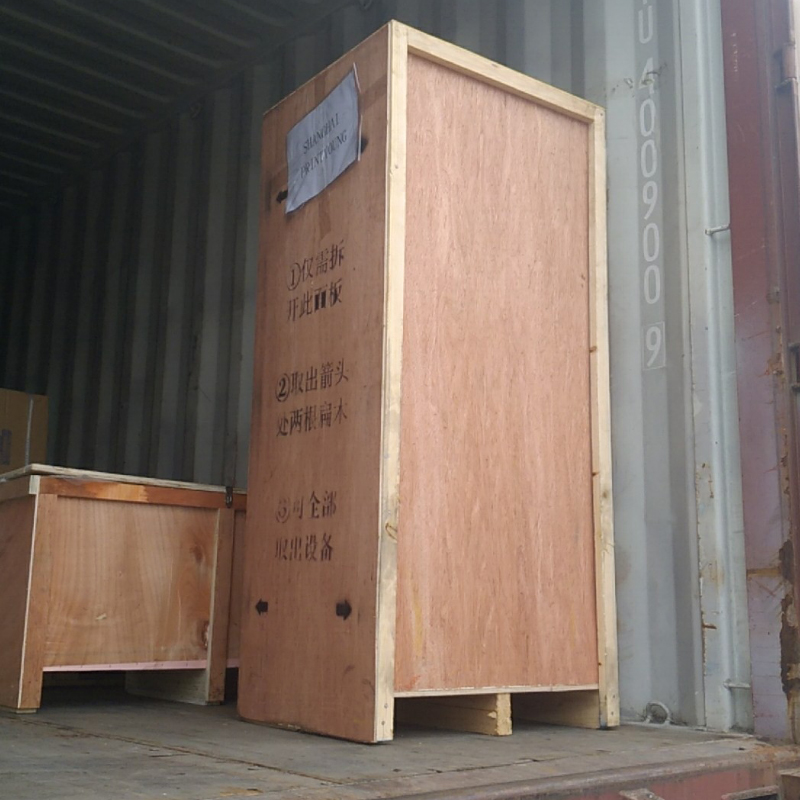

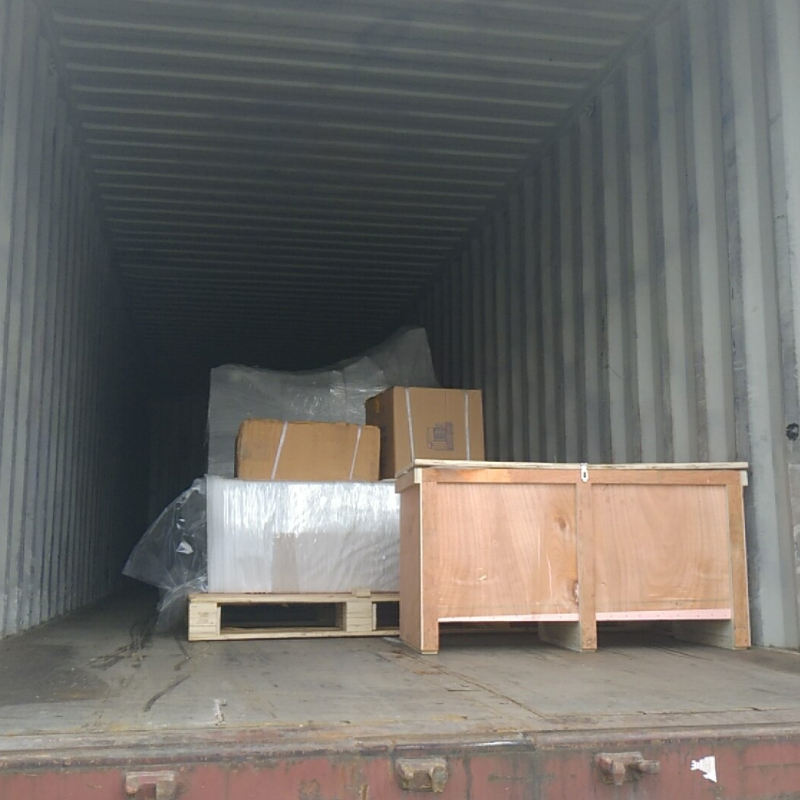

Packaging&Shipping

FAQ

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.
